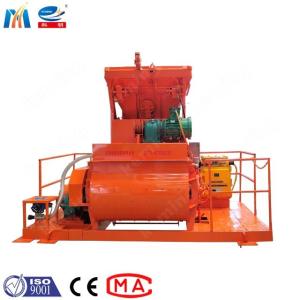

JS Series Horizontal Concrete Mixer Planetary Two Mixing Blade Mixer
Introduction:
The concrete mixing plant has good mixing performance. The equipment adopts the screw type twin-shaft forced mixing main engine, which not only has strong mixing performance, but also can achieve good mixing effect for concrete with dry hardness, plasticity and various proportions. And the stirring is uniform and the efficiency is high.
The concrete batching plant not only has an excellent mixing host, but also has various sophisticated accessories, such as screw conveyors, metering sensors, pneumatic components, etc. These components ensure the high reliability of the concrete batching plant during operation, accurate metering skills and Extra long service life. At the same time, each maintenance part of the concrete mixing plant is equipped with a walking platform or inspection ladder, and has sufficient operating space. The mixing host can be equipped with a high-pressure automatic cleaning system, which has the function of oil shortage and over-temperature automatic alarm function, which is convenient for equipment maintenance.
Specification:
| Model | HZS25 | Batching Machine model | PLD800 |
| Mixing capacity | 25m3/h | Aggregate weighing range | 0-2000kg |
| Mixing Cycle Time | 72s | Weighing accuracy | ±2% |
| Aggregate amount | 2~3 | Cement weighing range | 0-250kg |
| Total Installed Capacity | 60kW | Weighing accuracy | ±1% |
| Mixing model | JS500 | Water weighing range | 0-150kg |
| Charging Capacity/Discharging Capacity | 800/500L | Weighing accuracy | ±1% |
| Mixing time | 60s | Admixtures weighing range | 0-25kg |
| Maximum particle size of aggregate (pebble/crushed stone) | < 60/80mm | Weighing accuracy | ±1% |
| Discharge height | 2000/3800mm |
| Model | HZS35 | Batching Machine model | PLD1200 |
| Mixing capacity | 35m3/h | Aggregate weighing range | 0-2000kg |
| Mixing Cycle Time | 72s | Weighing accuracy | ±2% |
| Aggregate amount | 3~4 | Cement weighing range | 0-400kg |
| Total Installed Capacity | 80kW | Weighing accuracy | ±1% |
| Mixing model | JS750 | Water weighing range | 0-250kg |
| Charging Capacity/Discharging Capacity | 1200/750L | Weighing accuracy | ±1% |
| Mixing time | 60s | Admixtures weighing range | 0-30kg |
| Maximum particle size of aggregate (pebble/crushed stone) | < 60/80mm | Weighing accuracy | ±1% |
| Discharge height | 3800mm |
Company introduction:
Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd.
Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. is a subsidiary of Henan Coal Scientific Research Institute Co., Ltd.It is the first company in China to develop and produce shotcrete machines. It is one of the national standards for the development of spraying industry.
Achievements: It has more than 20 national invention patents and utility model patents, and more than 10 identification of relevant departments. It has won 8 awards from coal associations and provincial departments, and won the Henan Provincial Science and Technology Progress Award.In 2014, “ Keming ” brand won the famous trademark of Henan Province. It has been awarded ISO9001 Quality Management System Certification, OHSAS 18001 Occupational Health and Safety Management System Certification, ISO14001 Environmental Management System Certification and CE Certification.
Service: mechanical and electrical products, chemical technology, the development and manufacture of mining products, technical research of energy conservation and environment protection technology, and relative consultation service.
Web: www.kemingtech.com
ADD: No. 17, Fengyang Street, High-Tech Development Zone, Zhengzhou, Henan, China (Mainland)
Exhibition:
FAQ:
1. Q: Which model should we choose?
A: To recommend the most suitable model, please let us know your requirements and the details of your project, then will give you the professional suggestions soon.
2. Q: What is the vulnerable part? How many spares should we prepare?
A: After long-time running, the rubber piston and cylinder sleeve may get worn. We will offer some spares for free.
Referring to the service life of each part, we will put a rough estimate of requested spares according to your project scale.
3. Q: Can we have customized model?
A: Yes. Customized production and OEM production are available according to your actual requirements.
4. Q: Do i need technical skills to operate this machine?
A: Yes. Please read the Operation Instruction for some basic technical skills before operating this machine, and contact us if any operation procedure is unclear.
5. Q: What should we do if there are some problems with the machine?
A: The Operate Instruction will help with routine maintenance and common problems.
Also, you can contact us for technical instruction by email, instant messenger or live video etc.
6. Q: What is the lead time?
A: 1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
7. Q: How about the package?
A: The machine will be wrapped by plastic film and packed by fumigation-free wooden case along with spare parts.
8. Q: How to place an order?
A: Both online order and offline order are acceptable.
It is suggested to place online order with a Trade Assurance to get full protection for first order.
9. Q :How to pay for this order?
A: Generally, TT, 30% deposit 70% before shipment;
L/C at sight (high bank charge, not suggest, but acceptable);
100% TT in advance (especially for small amount and spare parts etc.)
